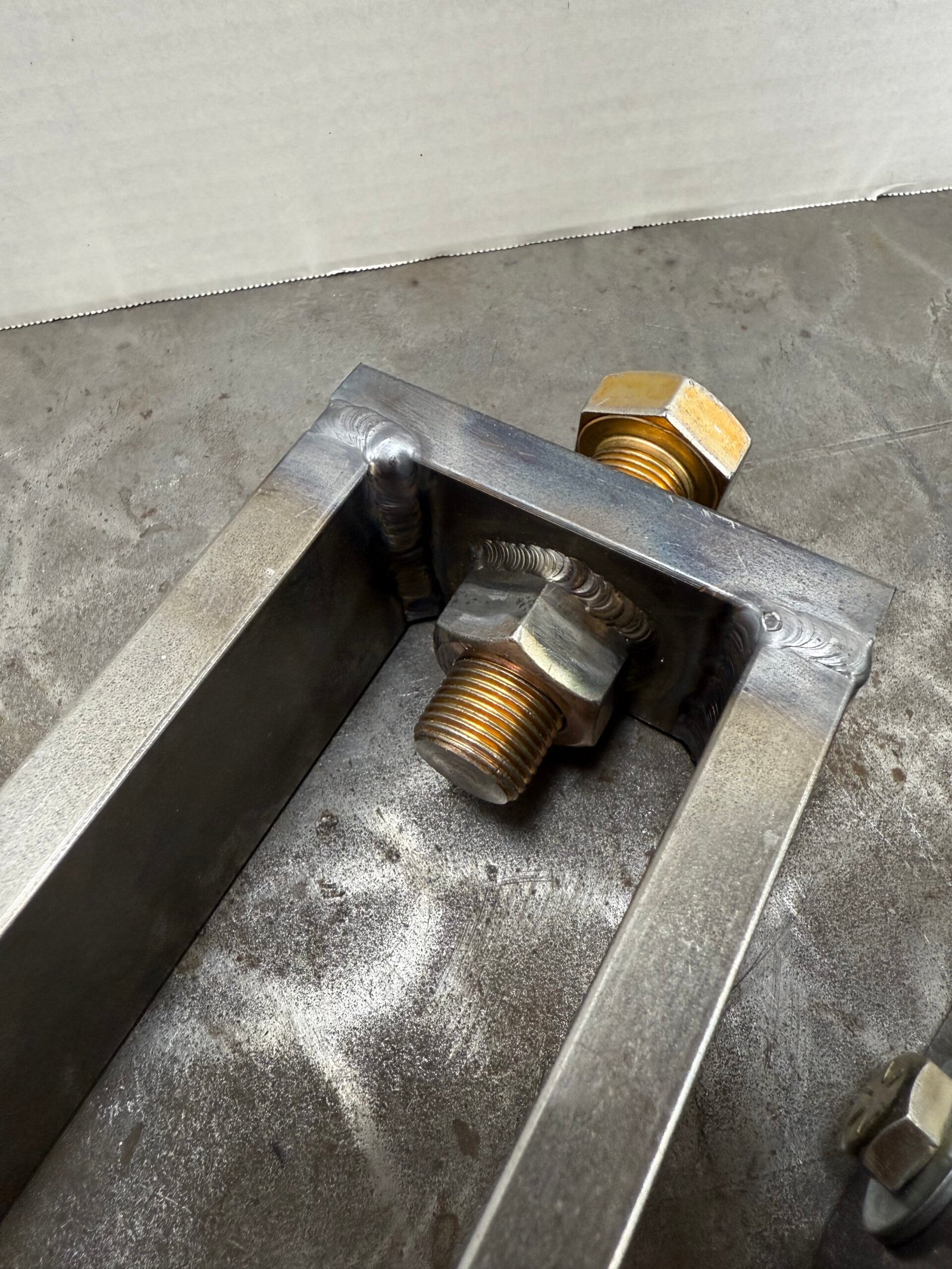

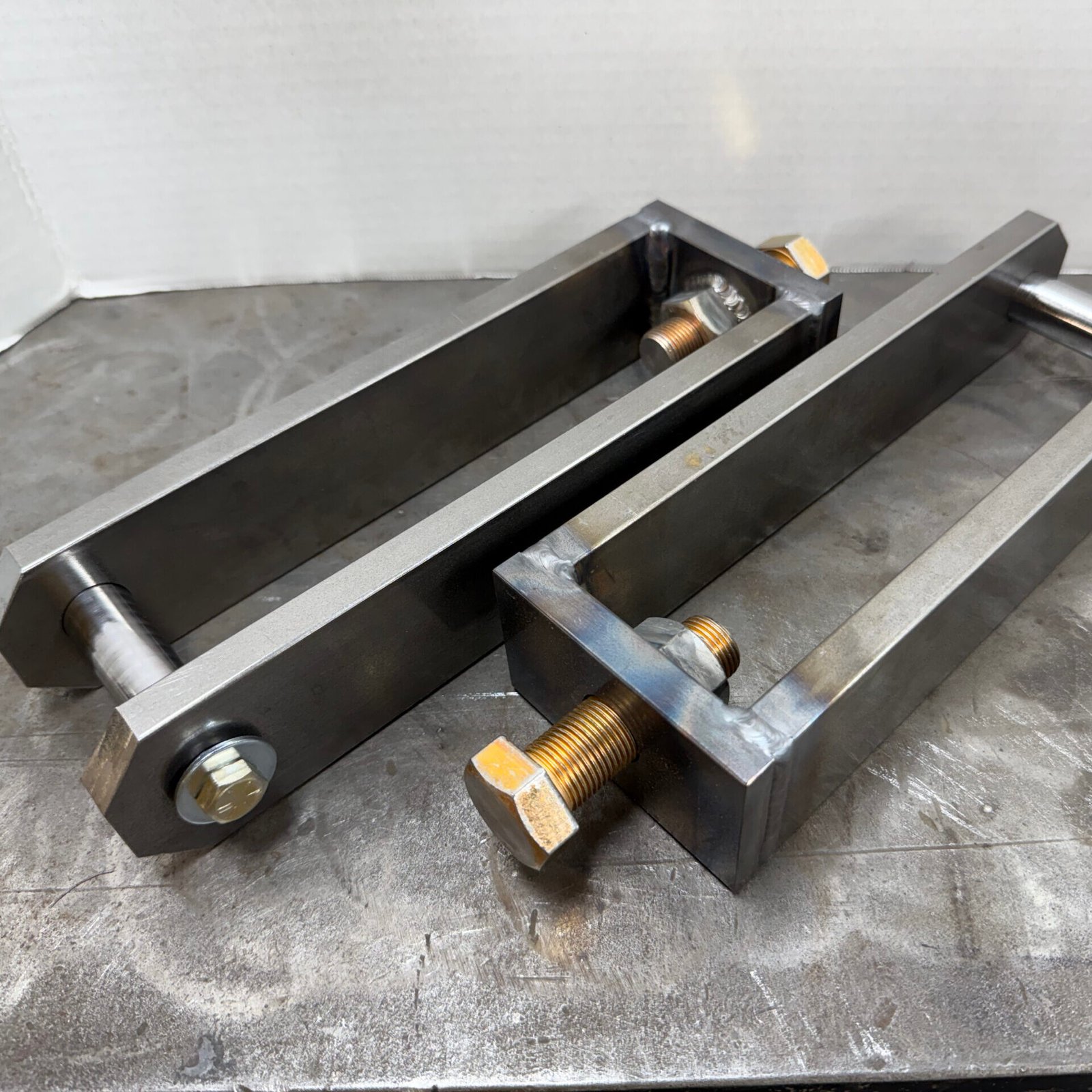

Allyn Tool Co approached DXM Design Works in need of a pressure testing fixture for a reverse engineering project they had undertaken. We developed a CAD model design for the fixture using the provided solid model of the device-under-test and produced manufacturing prints. We then manufactured two units in-house (as seen below) to meet the quick turnaround time required by the end customer.
