Bell Housing Adapter Plate
A company approached DXM Works requesting that a prototype bell housing adapter be machined for a product they are aiming to bring to market. DXM utilized customer-provided data and drawings to fabricate the plate for testing purposes ahead of scale manufacturing.

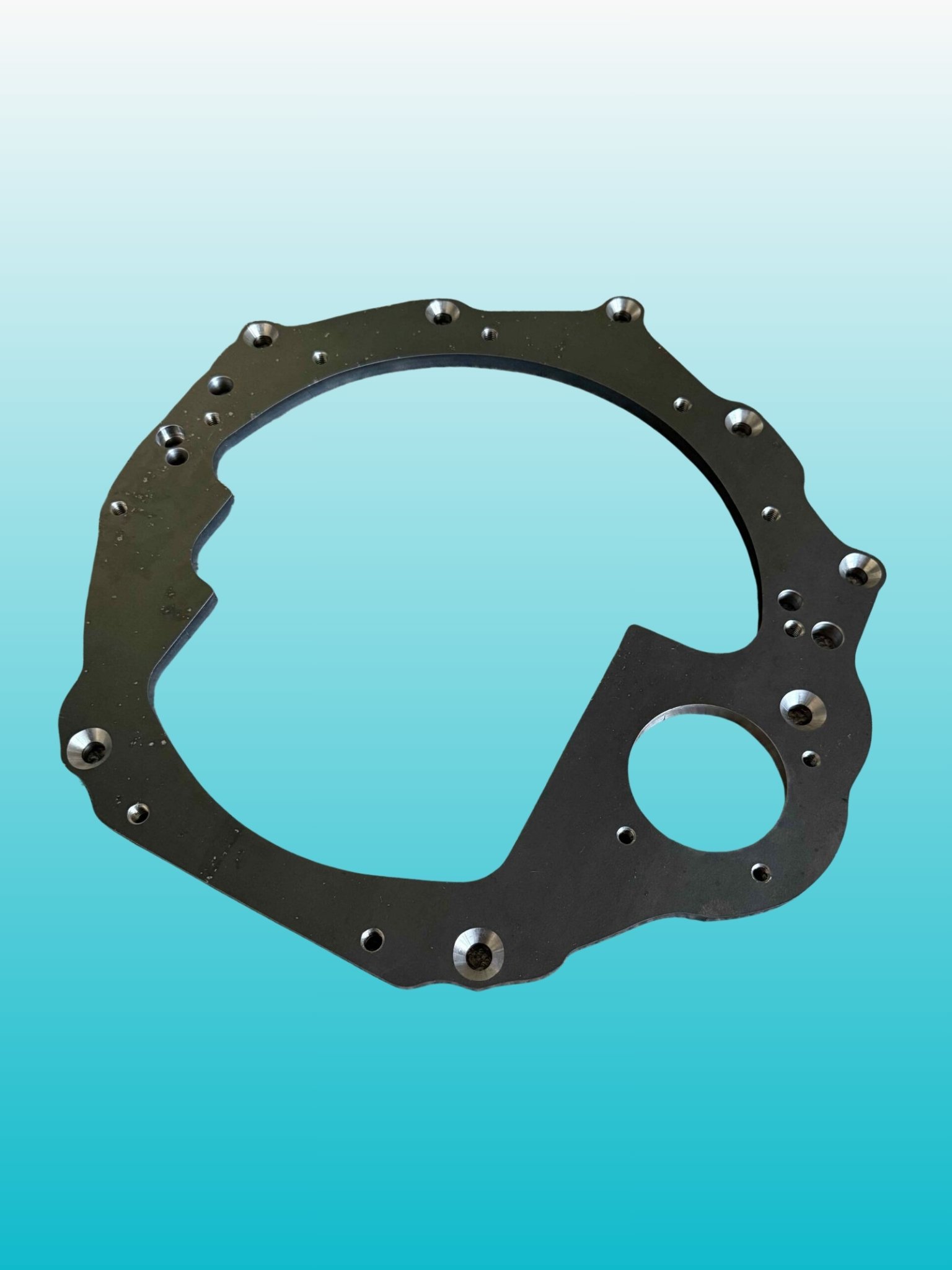

Complted plate (back) as delivered

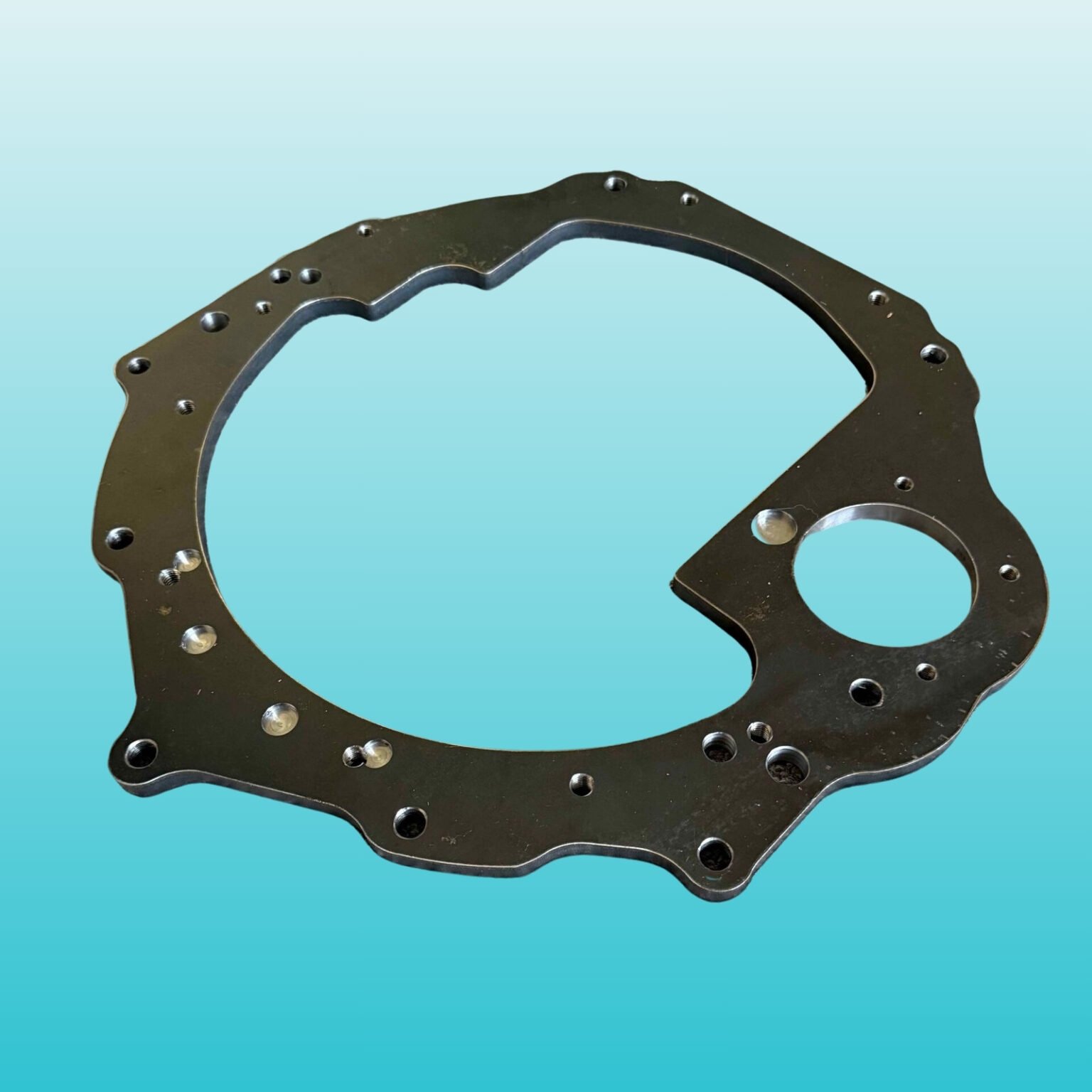

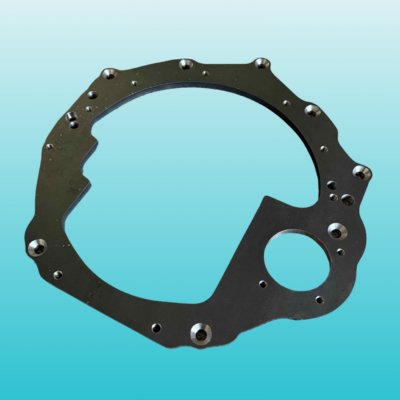

Completed plate (front) as delivered

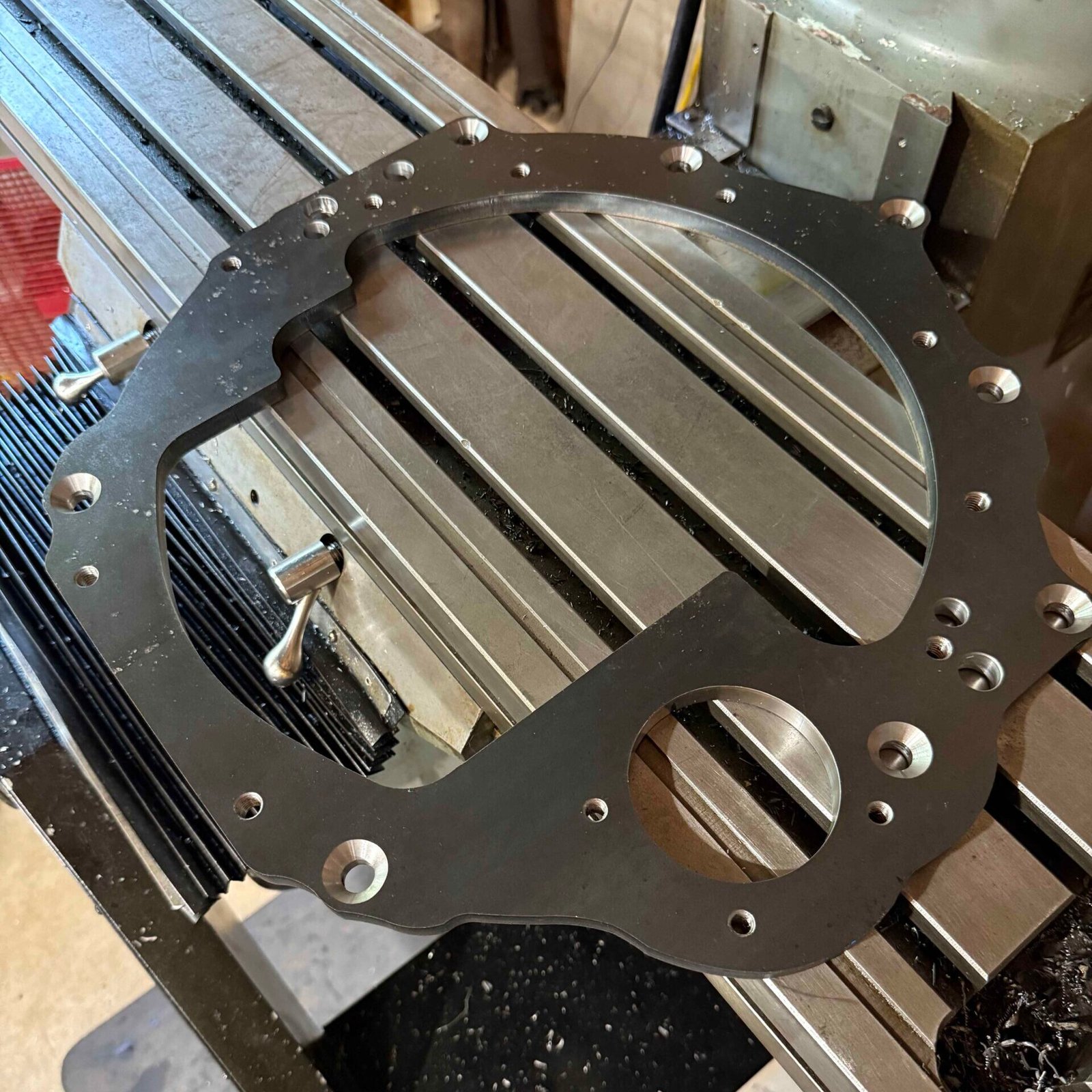

Completed bell housing adapter plate

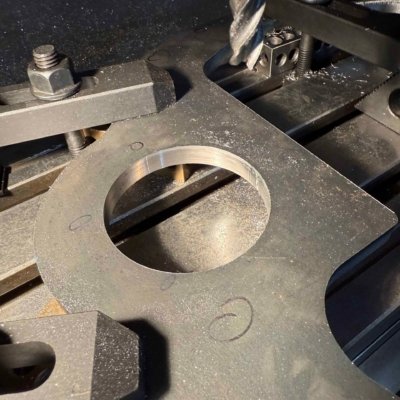

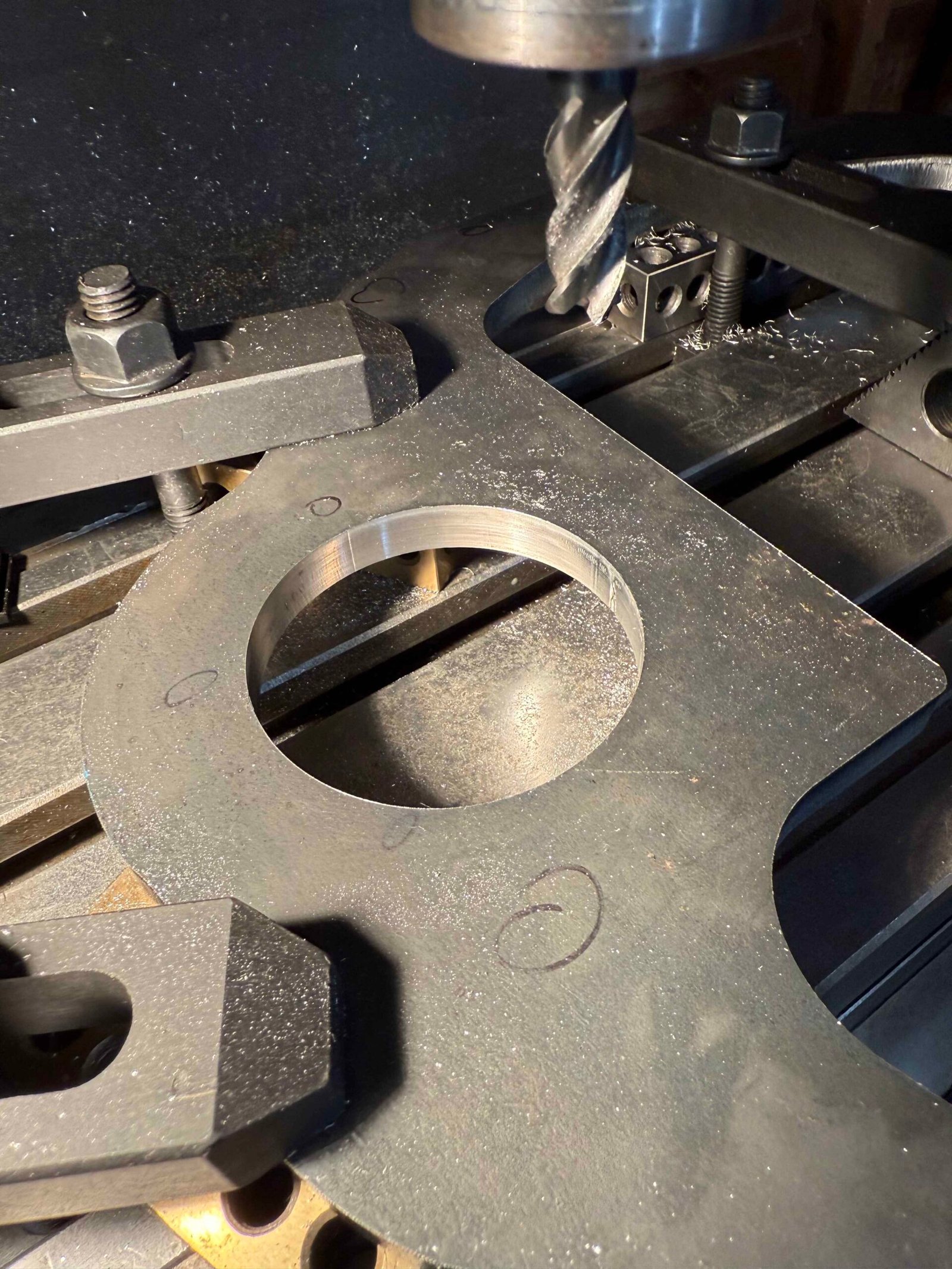

Machining a reference surface on laser cut plate

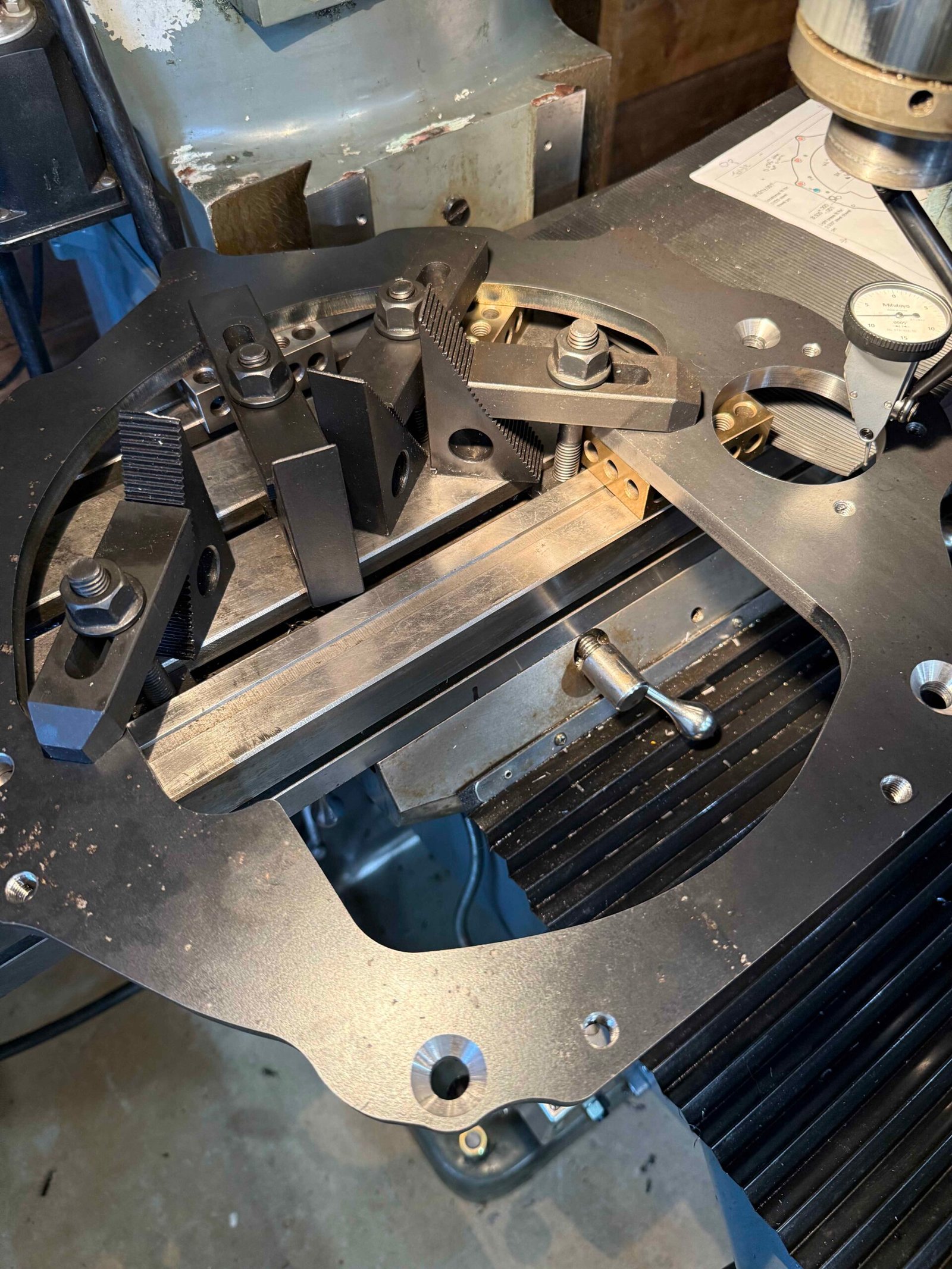

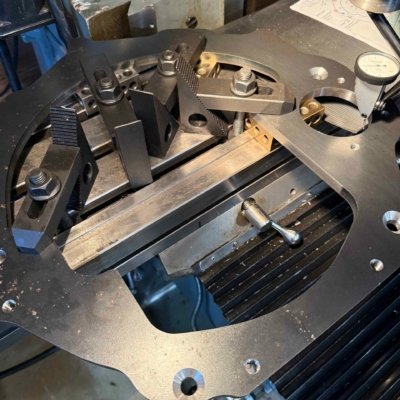

Indicating reference surface for second operation

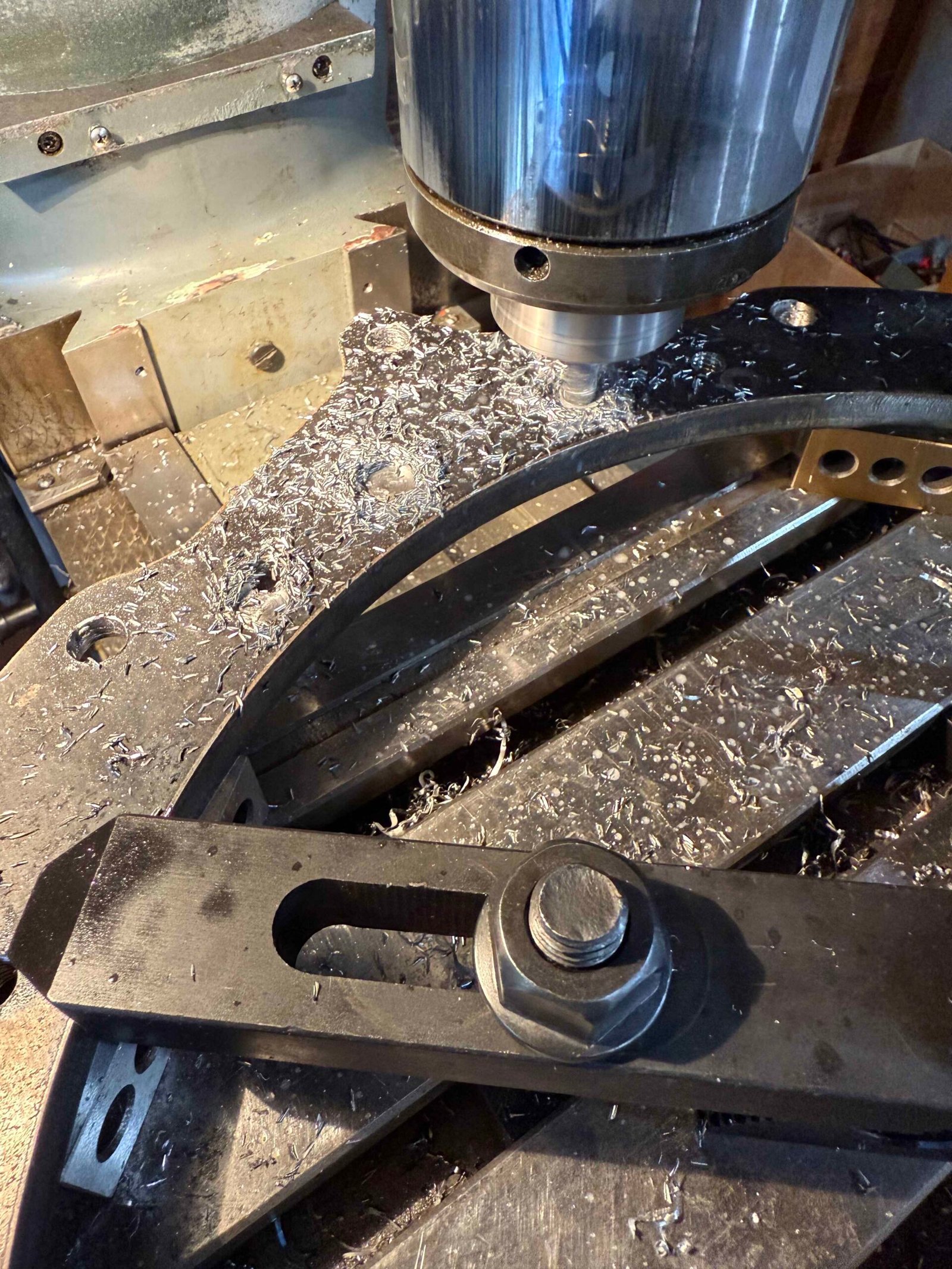

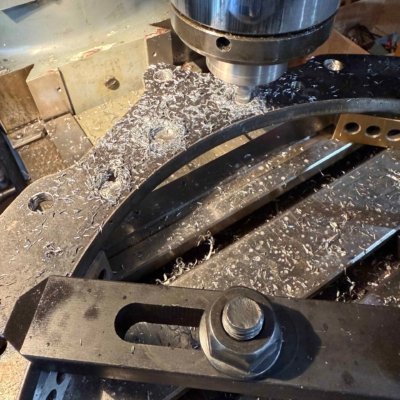

Machining first operation
